| Conduit: | UTM Black Enamel Finish with Primer Undercoat on all Steel Show Surfaces; Aluminum Parts in Natural Finish. Black Rust Preventative Coating on Cross members, Undercarriage and Inboard Surface on Main Beams. |
| Cross Members: | 3" Steel I-Beam Cross members on 16" Center Line Full Length (Rearmost 3 Cross members on 12" Center Line) |
| Curtain Color: | White |
| Curtain Material: | Cross-linked Rip Stop Polyester |
| Curtain Rollers: | Nylon Curtain Roller |
| Curtain Wearbands: | 10" Double-Thick Curtain |
| Deck Type: | 4" Wedge |
| Floor Type: | 1-1/8" Extruded Aluminum Flat Top Floor Full Width (Provides a 9,000 lb. Fork Truck Front Axle Load) |
| Front Corner Post: | 7 Gauge Formed Steel |
| Front Gooseneck Depth: | 8-5/8" Front Gooseneck Depth |
| Front Panels: | .050" Pre-painted White Aluminum |
| Front Subframe Assembly Finish: | 1/4" Steel Approach Plate |
| Front Wall Attachment: | Grote® Sealed Beam 2-1-2-3 Clearance Light Package (11 lights total) |
| Front Wall Lining: | 1/4" Plywood |
| Front Wall Posts: | 2" Extruded Aluminum |
| Gross Vehicle Weight Rating: | 65,000 lbs. GVWR |
| Hendrickson Air Ride Systems with Integral Axes: | 5" Diameter Axle |
| Hub Piloted System with Outboard Drums: | Outboard Cast Drums for 16-1/2"x 7" Brakes |
| Kingpin Type: | 1/2"x 4" 80,000 PSI High Tensile Steel Bottom Flange |
| Length: | 53' 0" |
| Main Harness: | UTM Moisture Resistant 6-Wire Cable Harness with Internal Ground and 7-Way Plug |
| Oil Seals: | National® 5 Star Oil Seal for 5-year Warranty |
| Outriggers: | 3 Aluminum Tube Outriggers Each Side |
| Overall Height: | 13' 6" on a 48"Fifth |
| Payload Capacity: | 55,000 lbs. Payload Capacity |
| Pelmet: | Heavy-Duty Rubber |
| Rear Case & Buckplate Material: | Carbon Steel |
| Rear Case Corner Posts & Header: | Quick Release Rear Corner Post |
| Rear Door Hinges: | 4 Rear Door Hinges |
| Rear Door Lock Rods: | 1 Rear Door |
| Rear Door Panels: | 3/4" Ply Metal |
| Roof Exterior Finish: | 1-3/8" Extruded Aluminum Hat-Shaped Bows on 24" Center Line |
| Roof Skin: | .040" Aluminum |
| Rubber Dock Bumpers on Rear Rail: | (2) 3-1/2" Rubber Bumpers Mounted on Rear Rail |
| Side Posts: | 2 Removable Side Posts on each Side |
| Side Rail: | 5-3/8" Deep Tautliner Extruded Aluminum Full Length Side Rail with Integral Winch Track on Road Side and Curb Side |
| Slider Suspension Location: | 69" Rear and 159" Forward Suspension Location for 90" of Slider Travel |
| Spring Suspension: | 69" Rear and 159" Forward Suspension Location for 90" of Slider Travel |
| Springs: | 3 Leaf Steel Springs |
| Stop Tail Turn Light Configuration: | Grote 4" L.E.D. Stop/Tail/Turn Lights |
| Top Flange: | Hat Section 80,000 PSI High Tensile Steel Top Flange |
| Top Front & Top Side Rail Finish: | Extruded Aluminum |
| Vertical Tensioning Strap: | 1-3/4" Wide Nylon on 24" Center Line (each Strap is rated at 2,500 lbs.) |

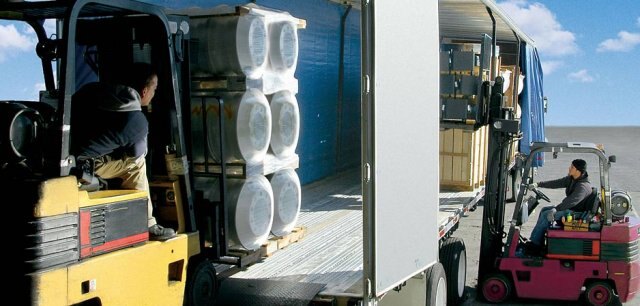

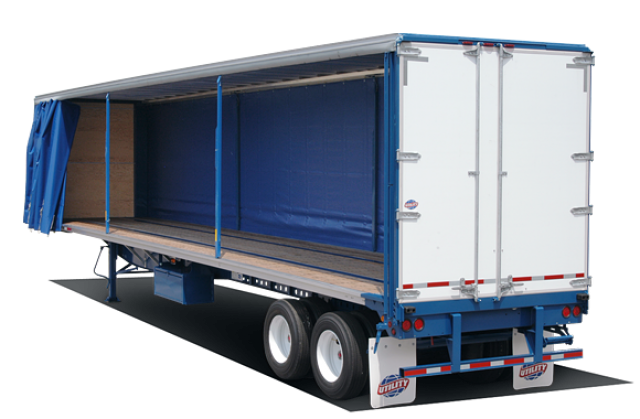

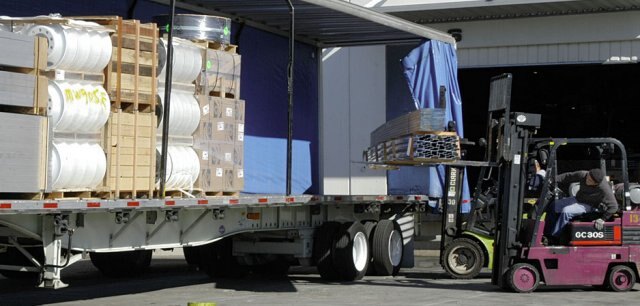

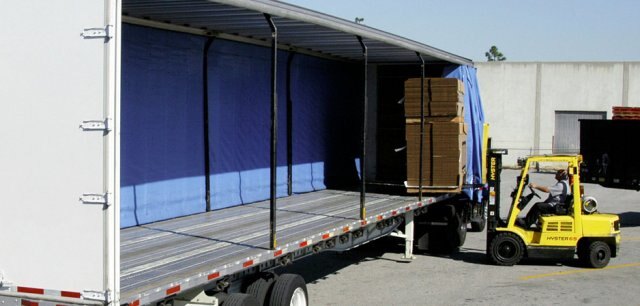

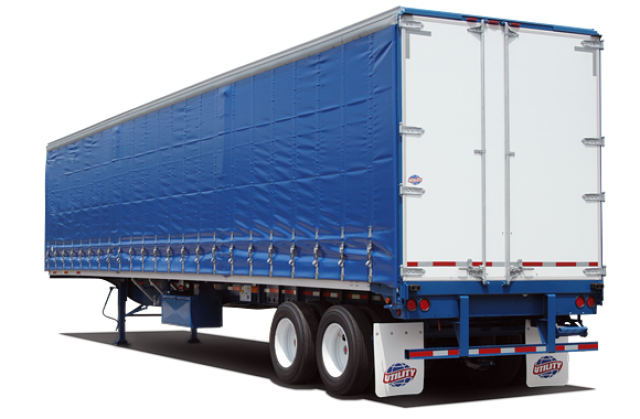

Loads like a flatbed - protects like a van. With a high strength-to-weight ratio, The Tautliner® curtainsided trailer provides three-way simultaneous access for optimum load versatility.
