INFORMATION DETAILS
ID: 13240103
|
Year: 2014
|
Make: Landoll
|
Model: Utility Tag Model LT1016
|
Type: New
|
| MSRP:
N/A |
Engine Size - cc: N/A |
SELLER DESCRIPTION
 Full 10,000 lb. capacity 16' Tag

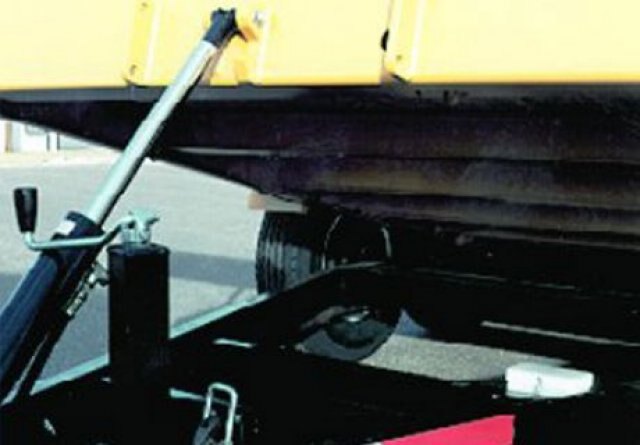

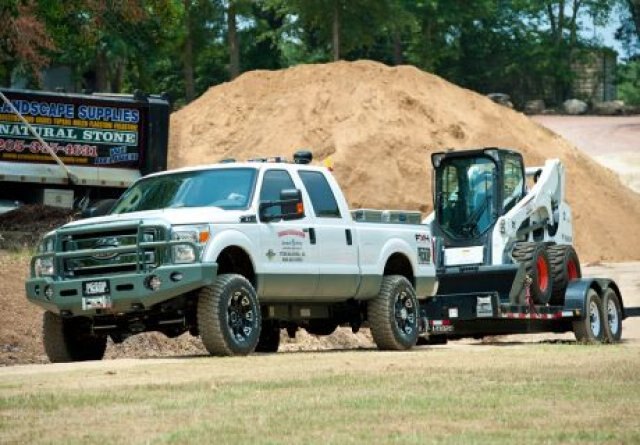

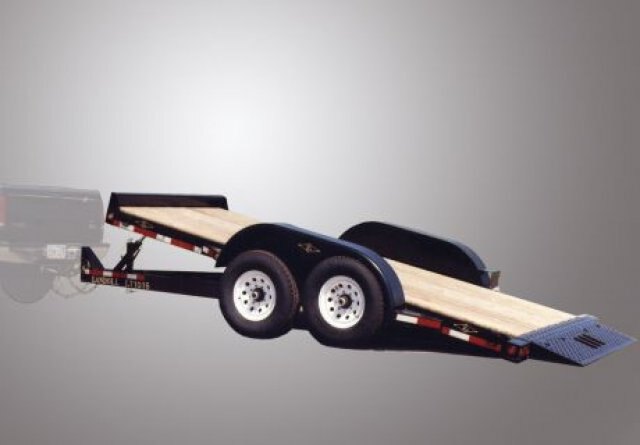

The LT1016 is a 10,000 lb. capacity 16' tilting tag trailer designed to haul light construction and landscaping equipment. The LT1016 is ideal for rental applications. A cushion cylinder tilts the deck for easy loading and unloading. GVWR of the LT1016 is 13,150 lbs. Two 6,000 lb. Torflex axles and 235/80R 16 Load Range E tires are standard. Numerous options are available to customize the trailer to your needs.
|
|
Features
|
-
Estimated Base Weight: 3150 Lbs.
-
*Load Capacity: 10,000 Lbs.
-
Main Frame: 6" Channel
-
Crossmembers: 4" Jr. I-Beam 80,000 PSI Yield on 24" Centers
-
Jack: 7,000 Lb. Top Crank Bull Dog
-
Tires: 235/80R 16LR E
-
Wheels: Steel Wheels - 8 Bolt Pattern
-
Axles: 2-6,000 Lbs. Ez Lubes
-

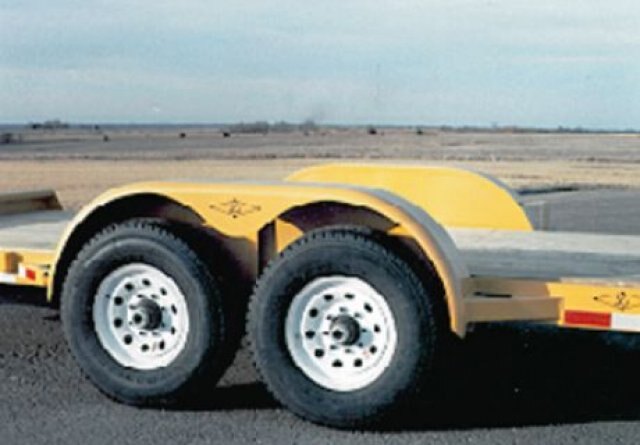

Suspension: Torflex Axles
-
Brakes: 12" x 2" Electric Brakes (Both Axles)
-

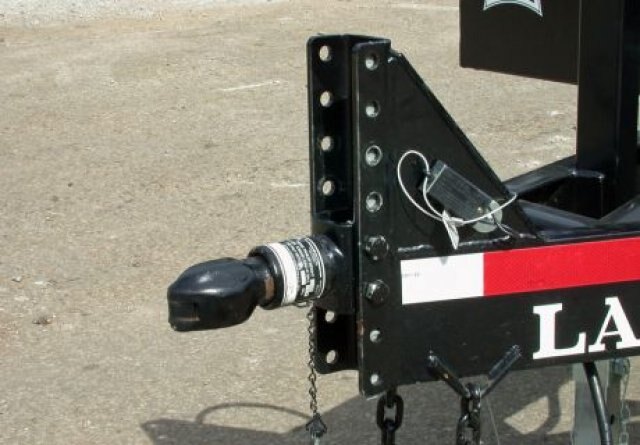

Hitch: Your Choice: 2 5/16" Ball or 3" Pintle Hook, 12" Vertical Height Adjustment--12,000 Capacity
-
Toolbox: In Hitch
-
Decking: 2" CA-B (Copper Azole) Treated Pine
-
Deck Height (Loaded): 22" Loaded
-
Width: 80" Inside Fenders - 102"O.A.
-
Length: 16' Flat Deck
-
Load Angle: 12.4 Degrees
-
G.V.W.R. 13,150 Lbs.
-

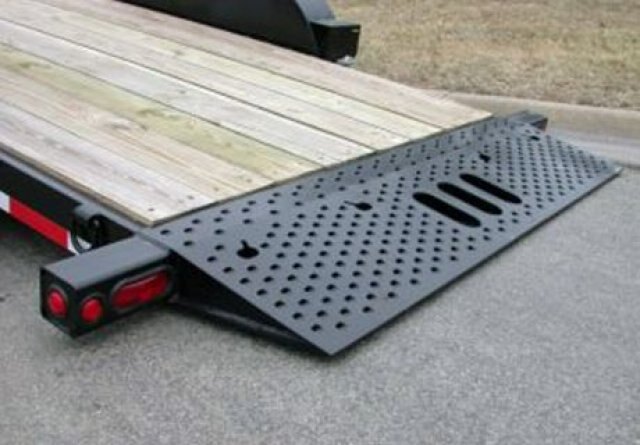

Approach: Full Width Landoll Traction Plate
-

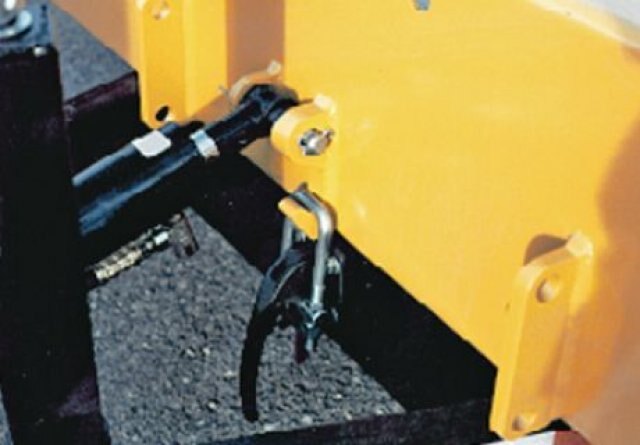

Lock Down: Positive Over Center
-
Lights: Sealed Beam - Per I.C.C & Federal Regulations
-
Electrical: 6 Pole Electric Plug - Wiring in Conduit
-

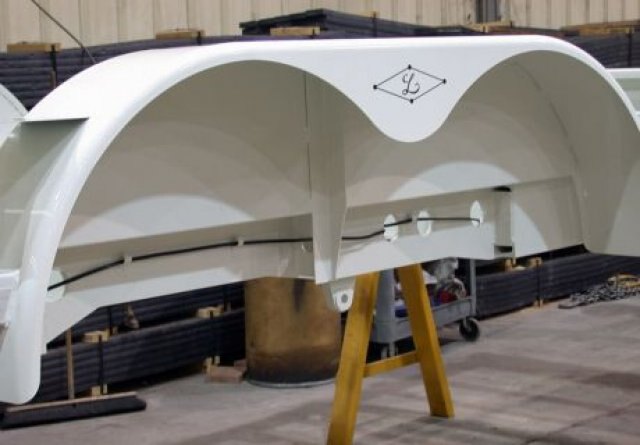

Fenders: 14 Gauge Cold Rolled Formed with Back
-
Running Boards: 16 Gauge Cold Roll Formed with Anti-Skid Tape
-
Tie Rings: 5/8" D-Rings (4)
-
Stake Pockets: 2 per Side
-

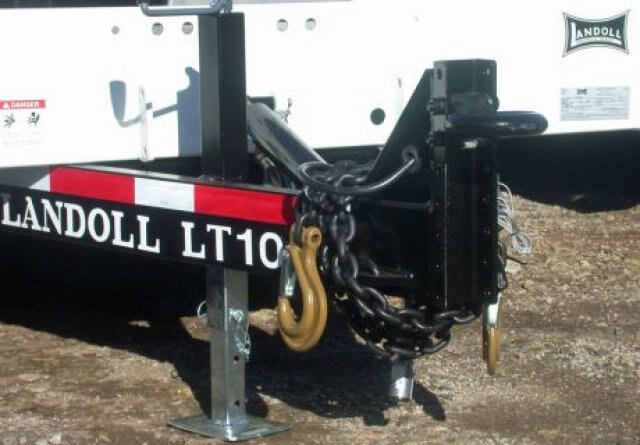

Safety Chains: 3/8" x 35" G70 Chain
-
Break-away Kit: with Gelcel Chargeable Battery and Box
-
Finish: Your Choice: White, Black or Yellow Non-Fading Scratch & Chip Resistant "Powder Coat" Paint
-
Decals: Hi-Visibility Reflective Package
|
|

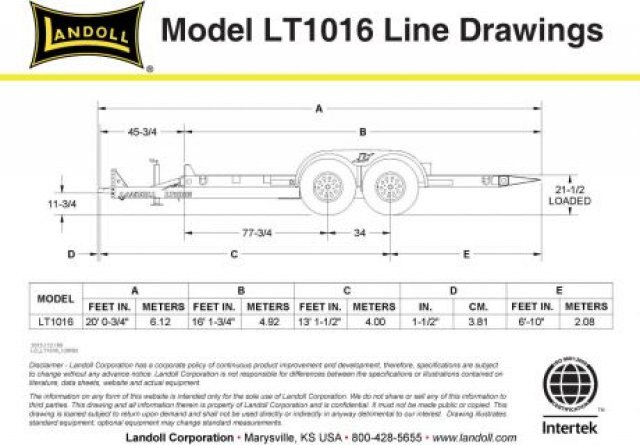

Technical Specifications:
|
|
|
MODEL
|
CAPACITY
|
BASE WEIGHT |
DECK |
AXLES |
TIRES & PLY RATING |
|
LT1016 |
10,000 lbs. |
xxxx |
102" |
2 |
235/80R 16LR E |
|
