INFORMATION DETAILS
ID: 13260699
|
Year: 2014
|
Make: H&S
|

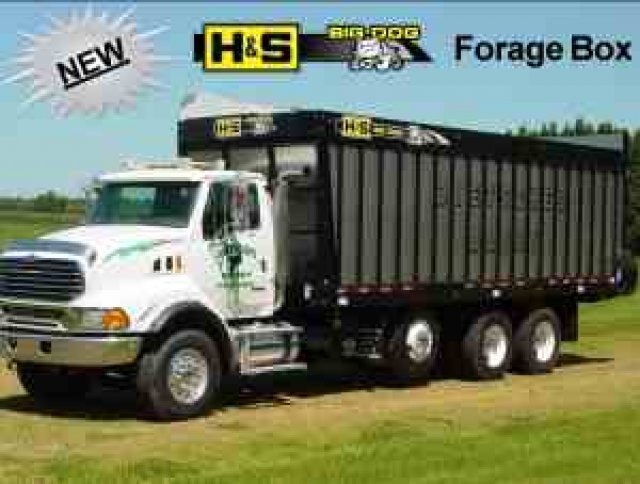

Model: BIG DOG 27' 7" Forage Box
|
Type: New
|
| MSRP:
N/A |
Engine Size - cc: N/A |
| INSIDE HEIGHT: | 7' 2'' |
| OVERALL WIDTH: | 102'' |
| INSIDE WIDTH: | 98'' |
| OVERALL LENGTH: | 27' 7'' |
| INSIDE LENGTH: | 26' |
| DUAL HYDRAULIC MOTORS: | STANDARD |
| CAPACITY: | 1477 CUBIC FEET |
SELLER DESCRIPTION
|
PL88C OPEN BARREL PINTLE CHAIN
 PL88C OPEN BARREL PINTLE CHAIN @29,900# PER STRAND = 119,600#, W/2'' X 1'' X 3/16'' FORMED APRON CHANNELS FOR APRON CROSS BARS.
|
|
DUAL HYDRAULIC MOTOR DRIVE SYSTEM
 THE MOTORS EVENLY DRIVE EACH FINAL DRIVE SYSTEM FOR MORE POWER AND LESS SHAFT STRESS THEN A SINGLE MOTOR SYSTEM. THE DRIVE SHAFT FEATURES MD NYLON REVERSIBLE STYLE BEARINGS.
|
|
SPRING LOADED MAIN APRON TIGHTENERS
 APRON TENSION ADJUSTMENT IS MADE BY TIGHTENING THE 4 SPRING LOADED TIGHTENER BOLTS ON THE FRONT OF THE BOX. THE SPRING LOADED TIGHTENERS MAINTAIN TENSION ON THE APRON DURING START UP AND OPERATION.
|
|
REAR DOOR FEATURES
 THE H&S BIG DOG FEATURES A TOP PIVOT DOOR W/AIR GATE DELAY, DOOR LOCKS, AND LED LIGHTING.
|
|
OPTIONAL ROLLBACK TARP
 AN OPTIONAL ROLL BACK TARP IS AVAILABLE.
|
