INFORMATION DETAILS
ID: 13260770
|
Year: 2014
|

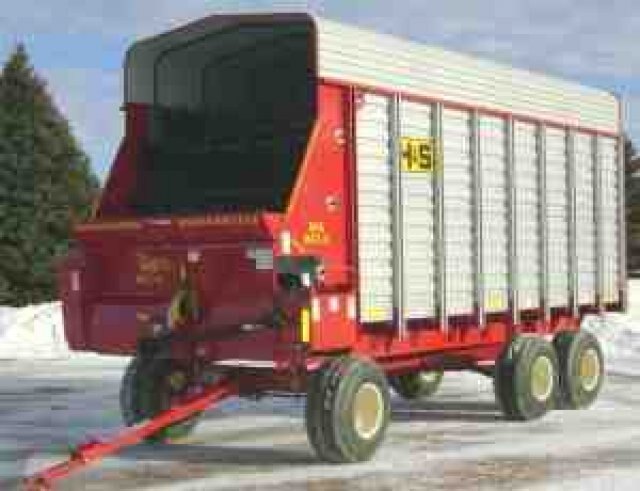

Make: H&S
|
Model: FBXCTA21 Forage Box
|
Type: New
|
| MSRP:
N/A |
Engine Size - cc: N/A |
| CAPACITY W/ROOF: | 1163 FT-3 |
| INSIDE WIDTH: | 7'4'' |
| INSIDE HEIGHT: | 99'' |
| OVERALL LENGTH: | 24'3'' |
| OVERALL WIDTH: | 107'' |
| OVERALL HEIGHT (BOLSTER TO ROOF): | 120'' |
| WEIGHT: | 5350# |
| POWER SOURCE: | 540 PTO OR HYDRAULIC DRIVE |
| EMERGENCY STOP CLUTCH: | STANDARD |
| OPTIONS: | N/A |
| TRANSPORT LIGHTS: | STANDARD |
| REAR ENDGATE: | AUTOMATIC LOCK AND UNLOCK |
SELLER DESCRIPTION
|
3-18'' 4 BAR H.D. SPIRAL TYPE BEATERS
 H&S USES THREE - 18'' 4 BAR H.D. SPIRAL TYPE BEATERS - NOT AUGERS. AGGRESSIVE IN HANDLING TOUGH MATERIAL, THEY ARE EVEN FEEDING. ALL THREE BEATERS ARE MOUNTED IN THE HEAD, NOT AUXILIARY PANELS IN THE BOX. BEATER SHAFTS ARE 1 1/4'' EQUIPPED WITH GREASABLE BEARINGS.
|
|
SIMPLE VARIABLE SPEED DRIVE
 A SIMPLE TROUBLE-FREE VARIABLE SPEED DRIVE LETS YOU MATCH JUST THE RIGHT UNLOAD SPEED TO THE CROP TYPE, LOAD CONDITION AND BLOWER CAPACITY. A BRONZE WORM GEAR IS STANDARD. #80 DRIVE CHAIN DRIVES THE MAIN APRON DRIVE SHAFT. THE MAIN APRON DRIVE SHAFT IS 1 3/4'' STRESS PROOF SHAFTING. MAIN APRON UNLOAD RATE IS VARIABLE AND RANGES FROM 9'' UP TO 12'6''/MINUTE.
|
|
CLEAR BEATERS BEFORE YOU START MAIN APRON
 A SEPARATE CLUTCH ALLOWS YOU TO START AND CLEAR THE BEATERS BEFORE YOU START THE MAIN APRON CONVEYORS. THE HD CLUTCH CAN BE USED TO ENGAGE JUST THE CROSS CONVEYOR, THE CROSS CONVEYOR AND BEATERS, OR THE CROSS CONVEYOR, BEATERS AND MAIN FLOOR APRON IN ANY SPEED. SHIELDS ARE REMOVED TO SHOW THE DUAL BELT CLUTCH WHICH IS THE PRIMARY DRIVE SOURCE. THE EMERGENCY STOP MECHANISM IS BUILT INTO THE DRIVE UNIT AND CAN BE ACTIVATED FROM THE FRONT, SIDES OR REAR OF THE BOX.
|
|
DUAL BELT CLUTCH
 SHIELDS ARE REMOVED TO SHOW THE DUAL BELT CLUTCH WHICH IS THE PRIMARY DRIVE SOURCE. THE EMERGENCY STOP MECHANISM IS BUILT INTO THE DRIVE UNIT AND CAN BE ACTIVATED FROM THE FRONT, SIDES OR REAR OF THE BOX.
|
|
10'' HIGH SPEED CROSS AUGERS
 THE TWIN AUGER UTILIZES TWO - 10'' HIGH SPEED CROSS AUGERS EQUIPPED WITH HOLD-DOWNS AND WIPERS. THE AUGER HOUSINGS ARE POLY-LINED TO REDUCE BUILD-UP.
|
|
STANDARD BUILT IN AUGER EXTENSION
 THE TWIN AUGERS EXTEND 11'' BEYOND THE SIDE OF THE HEAD. A BUILT IN AUGER EXTENSION IS STANDARD AND ELIMINATES SPILLAGE BETWEEN BOX AND BLOWER.
|
|
STEEL-WELDED SUBFRAME
 H&S BOXES HAVE AN ALL STEEL-WELDED SUBFRAME.
|
|
TRANSPORT LIGHTS STANDARD
 TRANSPORT LIGHTS ARE STANDARD ON ALL H&S BOXES. THIS IS THE LIGHT CONFIGURATION ON THE FRONT UNLOAD BOXES.
|
|
OPTIONAL FRONT HYDRAULIC DRIVE
 ALL FRONT UNLOAD BOXES HAVE A STANDARD PTO DRIVE WHILE UNLOADING OFF THE FRONT. FRONT HYDRAULIC DRIVE IS OPTIONAL.
|
