ID: 13544535
|
Year: 2014
|
Make: H&S
|

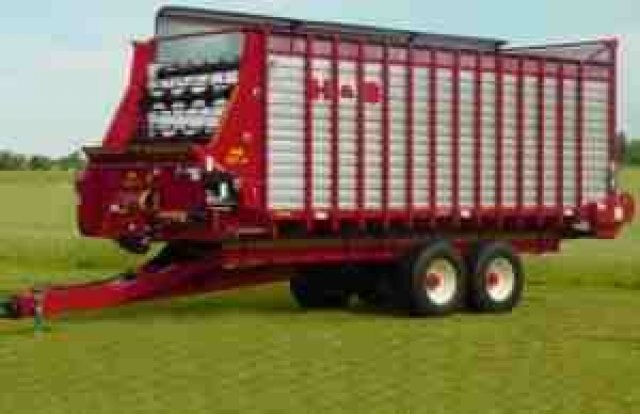

Model: SD 7+4 22 Forage Box
|
Type: New
|
| MSRP:
N/A |
Engine Size - cc: N/A |
| INSIDE WIDTH: | 7' 4'' |
| INSIDE HEIGHT (FLOOR TO TOP OF SIDE): | 86'' |
| INSIDE LENGTH: | 22' |
| OVERALL WIDTH W/EXTENSION: | 109" |
| OVERALL LENGTH: | FRONT 25' 7'' F&R 26' 6'' |
| STANDARD BOX OVERALL HEIGHT: | 121" |
| FRONT UNLOAD BOX CAPACITY: | 1123 CU. FT. |
| FRONT AND REAR UNLOAD BOX CAPACITY: | 1143 CU. FT. |
| WEIGHT - FRONT UNLOAD BOX: | 8865# |
| WEIGHT - FRONT & REAR UNLOAD BOX: | 9065# |
| UNLOADING BEATERS: | 3-18''-4 BAR SPIRAL, EVEN FEED |
| ROOF: | OPTIONAL |
SELLER DESCRIPTION
|
STRONGER GEARBOX
 STRONGER MAIN GEARBOX W/LARGE BEARINGS, SPRING LOADED TIGHTENERS ON BEATERS
|
|
HEAVY DRIVE CHAINS, CLEAN OUT PAN
 HEAVIER DRIVE CHAINS, QUICK RELEASE CROSS CONVEYOR CLEAN OUT PAN
|
|
4TH BEATER
 OPTIONAL 4TH BEATER
|
|
QUICK CHANGE PIN
 AN OPTIONAL REAR UNLOAD DRIVE SYSTEM WITH A QUICK CHANGE PIN IS AVAILABLE ON SUPER DUTY FORAGE BOXES.
|
|
PTO DRIVE SYSTEM
 PTO DRIVE MODELS FEATURE A VARIABLE SPEED PULLEY DRIVEN W/ KEYS, 10'' DIAMETER DRIVE PULLEY, 12'' BUNK EXTENSION
|
|
HYDRAULIC DRIVE SYSTEM
 HYDRAULIC DRIVE MODELS FEATURE A VARIABLE SPEED PULLEY DRIVEN W/ KEYS, 10'' DIAMETER DRIVE PULLEY, 12'' BUNK EXTENSION
|
|
ELECTRIC OVER HYDRAULIC
 THE ELECTRIC-OVER-HYDRAULIC SUPER DUTY FEATURES HYDRAULIC VALVES WITH A VARIABLE SPEED HIGH/LOW SYSTEM AND CONTROL BOX, NO BELTS OR PULLEYS
|
|
ELECTRIC OVER HYDRAULIC MODELS
 ELECTRIC-OVER-HYDRAULIC MODELS HAVE A 24'' AUTOMATIC EXTEND/RETRACT EXTENSION
|
