Price	Contact for price	Sale Type	New
Year	2015	Quantity	N/A
Manufacturer	Landoll	Model	302D-B-43
Vin	N/A	Color	N/A
Date Received	N/A	Odometer	N/A

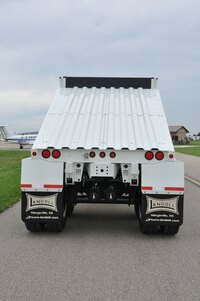

Comments	Minimize Weight - Maximize Payload With an empty weight of just 11,350 lbs. and a load capacity of up to 24 tons, the 302D Ultralite bottom dumps are a profitable investment.  A rounded barrel-shape hopper design providing inherent strength eliminates the need for all but one stiffener making for a lighter weight trailer.  The 21 cubic yard hopper capacity can be increased to 24 cubic yards with the additional sideboards and brackets. Unique Gates All 302D trailers are equipped with air-operated double clamshell windrow gates.  With high-speed 7" cylinders these unique gates open faster, easier and with less outward tub-wall pressure than conventional flat-bottom gates.  Rocking king pin bolsters that absorb and spread out load torque.  Spring suspension is standard but an optional neway air ride suspension is available.   Features Capacity: Single Hopper Ultralite Series Bottom Dump *Capacity: 21 Cubic Yards Estimated Base Weight: 11,350 lbs. Main Frame: Tubular Trust Design Target Area: 16'6"L x 88"W Height: 9'4" Parking Stands: Gate Mounted Tires: 11R 22.5 Radial LRG Double Coin Wheels: Hub Pilot 10-Hole Disc Steel Hubs: Steel Hubs / Outboard Brake Drums Axles: 2 - 25,000 lb. Tandem Dual Tire, Oil Bath Bearings Suspension: 4-Spring 3 Leaf Brakes: 16.5x7 Full Air / Spring Brakes ABS, 4S2M Oil Seal Hubs: Internal Mated Assembly Pin Setting: 18" Swing Clearance: 102" Width: 96" Air / Electrical: Glad Hands / 7-Way Receptacle Lights: Sealed, Potted, "LED", Grommet Mounted with Sealed Wiring Harness Finish: Steel Grit Shot Blast to Bright Metal Powder Coat Color: White / Black / Yellow / Blue / Red / Green Air Cylinders: 2 - 7"Bore x 30" Stroke Decals: Hi-Visibility Reflective Package Gates Air Reservoir Cap: 60 Gallon Gates: Single Air Operated Windrow Type 53" x 117-1/2'' Opening Hitch: Fifth-Wheel Kingpin with Lateral Rocking Type Plate Accessories: Weld on Full Rear Fenders with Mud Flaps, Air Line Lubricator, Water Separator, Manual Gate Control Valve, Auto Slack Adjustors, Hitch Mounting Bracket *Capacity ratings are frame capacities only. Actual load capacities may be restricted by factors such as gross axle weight ratings (GAWR) or state and federal regulations. Specifications subject to change without notice.   .igg{float:right; padding:10px;} .tdg{border-bottom:1px solid #dedede;} .ttl{width: 100%; height: 30px; background-color: #eeeeee; line-height: 26px; padding-top: 2px; font-weight: bold; color: #fff; margin-top: 10px; color: #df0101; font-size: 14px; clear: both;} .flex-box{max-width:700px; overflow:scroll; height:800px; font-size:12px;} .flex-box td{border:1px solid #000; padding:5px;} .flex-box th{border:1px solid #000; padding:5px; font-weight:bold; background-color:#04659d; color:#fff; text-shadow:1px 1px 2px #000;} .list ul{list-style:disc; padding-left:10px; } .list li{width:80%!important;} .spectable td{border: 1px solid #000000; padding:5px; }
